Details

  • •Circuit breakers and fuses

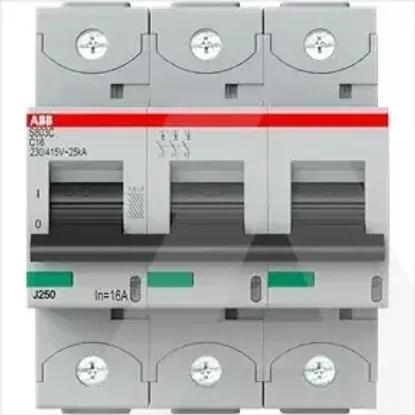

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Current limiting class3
Power loss9.3W
Connectable conductor cross section solid-core0 - 50mm²
Pollution degree3
Degree of protection (IP)IP20
Rated voltage440V
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Built-in depth82.5mm
Frequency50 - 60Hz
Over voltage category4
Flush-mounted installationNo
Rated insulation voltage Ui500V
Ambient temperature during operating-25 - 60°C
Explosion-proofNo
Connectable conductor cross section multi-wired0 - 70mm²
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp8kV
Additional equipment possibleYes
Voltage typeAC/DC
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated current16A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
