Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage440V
Frequency50 - 60Hz
Built-in depth82.5mm
Voltage typeAC
Current limiting class3
Rated insulation voltage Ui500V
Pollution degree3
Connectable conductor cross section solid-core0 - 50mm²
Suitable for flush-mounted installationNo
Width in number of modular spacings3
Over voltage category4
Degree of protection (IP)IP20
Power loss11.1W
Concurrently switching neutral conductorNo
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated impulse withstand voltage Uimp8kV
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Additional equipment possibleYes
Flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Release characteristicC
Number of protected poles3
Number of poles (total)3
Rated current40A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

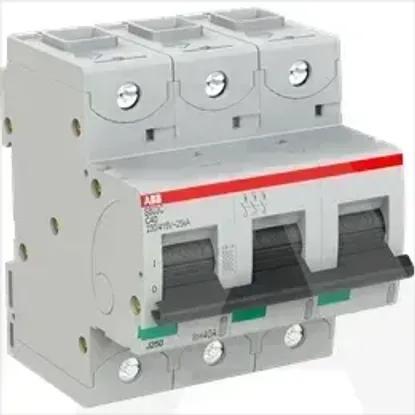

2CCS883001R0404 | S803C-C40
