Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current50A
Rated voltage440V
Voltage typeAC
Built-in depth82.5mm
Width in number of modular spacings3
Release characteristicC
Current limiting class3
Over voltage category4
Pollution degree3
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Connectable conductor cross section solid-core0 - 50mm²
Number of protected poles3
Power loss12.9W
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Explosion-proofNo
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

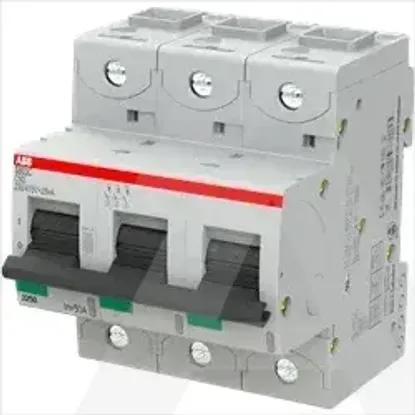

2CCS883001R0504 | S803C-C50
