Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth82.5mm
Voltage typeAC/DC
Release characteristicC
Over voltage category4
Rated current6A
Current limiting class3
Frequency50 - 60Hz
Rated insulation voltage Ui690V
Rated voltage690V
Width in number of modular spacings1
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Concurrently switching neutral conductorNo
Number of poles (total)1
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

2CCS891001R0064 | S801N-C6

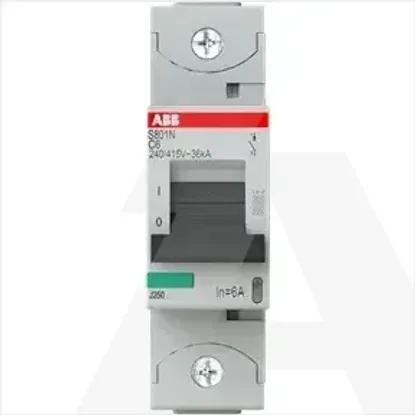

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • ABB

Technical specifications

Built-in depth

82.5mm

Voltage type

AC/DC

Release characteristic

C

Over voltage category

4

Rated current

6A

Current limiting class

3

Frequency

50 .. 60Hz

Rated insulation voltage Ui

690V

Rated voltage

690V

Width in number of modular spacings

1

Suitable for flush-mounted installation

Connectable conductor cross section solid-core

0 .. 50mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Number of protected poles

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

36kA

Ambient temperature during operating

-25 .. 60°C

Additional equipment possible

Pollution degree

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Concurrently switching neutral conductor

Number of poles (total)

1

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 .. 70mm²

Rated impulse withstand voltage Uimp

8kV
