Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage690V
Built-in depth82.5mm
Voltage typeAC/DC
Frequency50 - 60Hz
Release characteristicC
Rated current40A
Connectable conductor cross section solid-core0 - 50mm²
Current limiting class3
Number of protected poles1
Rated insulation voltage Ui690V
Pollution degree3
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Over voltage category4
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated impulse withstand voltage Uimp8kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Number of poles (total)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

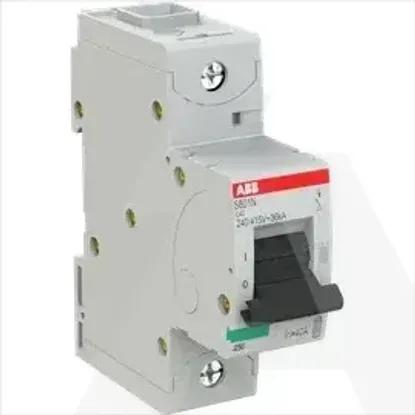

2CCS891001R0404 | S801N-C40
