Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth82.5mm
Voltage typeAC/DC
Rated current6A
Number of protected poles2
Pollution degree3
Width in number of modular spacings2
Current limiting class3
Connectable conductor cross section multi-wired0 - 70mm²
Rated insulation voltage Ui690V
Degree of protection (IP)IP20
Frequency50 - 60Hz
Release characteristicC
Over voltage category4
Rated voltage400V
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V20kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V20kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

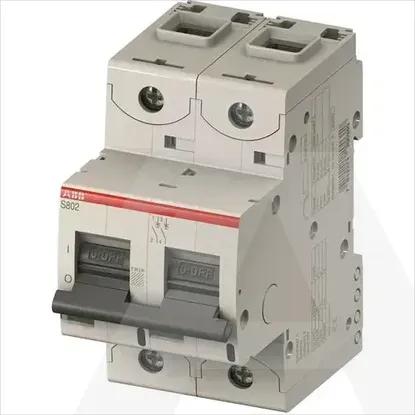

2CCS892001R0064 | S802N-C6
