Details

  • •Circuit breakers and fuses

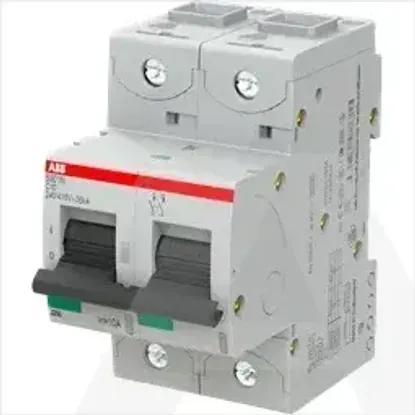

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Current limiting class3
Rated voltage400V
Over voltage category4
Built-in depth82.5mm
Rated insulation voltage Ui690V
Pollution degree3
Voltage typeAC/DC
Width in number of modular spacings2
Frequency50 - 60Hz
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles2
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Ambient temperature during operating-25 - 60°C
Rated current10A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
