Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage400V
Rated insulation voltage Ui690V
Rated current13A
Number of poles (total)2
Rated impulse withstand voltage Uimp8kV
Voltage typeAC/DC
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Pollution degree3
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Frequency50 - 60Hz
Over voltage category4
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Current limiting class3
Width in number of modular spacings2
Built-in depth82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

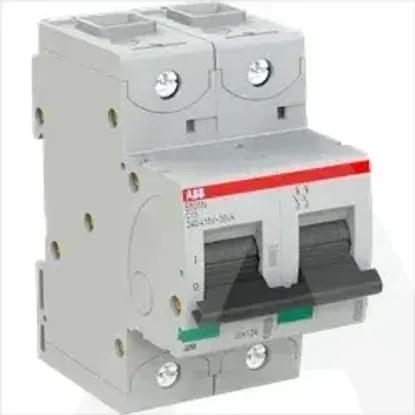

2CCS892001R0134 | S802N-C13
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Rated voltage
400V
Rated insulation voltage Ui
690V
Rated current
13A
Number of poles (total)
2
Rated impulse withstand voltage Uimp
8kV
Voltage type
AC/DC
Number of protected poles
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Pollution degree
3
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Frequency
50 .. 60Hz
Over voltage category
4
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Current limiting class
3
Width in number of modular spacings
2
Built-in depth
82.5mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36kA
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section multi-wired
0 .. 70mm²
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Connectable conductor cross section solid-core
0 .. 50mm²
