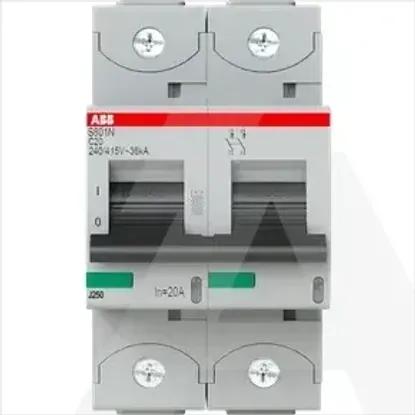

2CCS892001R0204 | S802N-C20

Release characteristic

C

Voltage type

AC/DC

Over voltage category

4

Width in number of modular spacings

2

Built-in depth

82.5mm

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36kA

Rated voltage

400V

Rated impulse withstand voltage Uimp

8kV

Number of poles (total)

2

Rated insulation voltage Ui

690V

Rated current

20A

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

36kA

Number of protected poles

2

Current limiting class

3

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Frequency

50 - 60Hz

Suitable for flush-mounted installation

No

Pollution degree

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Additional equipment possible

Yes

Ambient temperature during operating

-25 - 60°C

Connectable conductor cross section multi-wired

0 - 70mm²

Connectable conductor cross section solid-core

0 - 50mm²
