Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated impulse withstand voltage Uimp8kV
Number of protected poles2
Release characteristicB
Rated current25A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Number of poles (total)2
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Current limiting class3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Voltage typeAC/DC
Over voltage category4
Width in number of modular spacings2
Additional equipment possibleYes
Rated insulation voltage Ui690V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Pollution degree3
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Built-in depth82.5mm
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

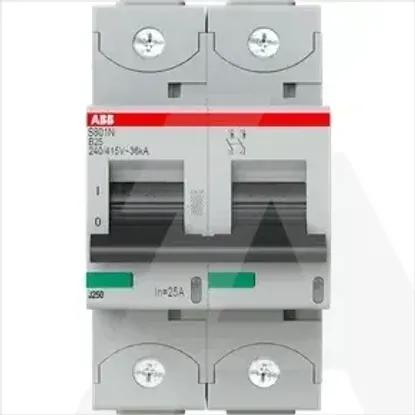

2CCS892001R0255 | S802N-B25
