Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Built-in depth82.5mm
Rated voltage400V
Frequency50 - 60Hz
Voltage typeAC/DC
Over voltage category4
Rated insulation voltage Ui690V
Rated current40A
Release characteristicB
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Pollution degree3
Rated impulse withstand voltage Uimp8kV
Degree of protection (IP)IP20
Width in number of modular spacings2
Number of protected poles2
Number of poles (total)2
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

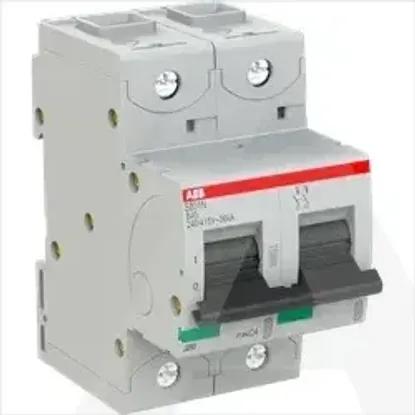

2CCS892001R0405 | S802N-B40
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Built-in depth
82.5mm
Rated voltage
400V
Frequency
50 .. 60Hz
Voltage type
AC/DC
Over voltage category
4
Rated insulation voltage Ui
690V
Rated current
40A
Release characteristic
B
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
0 .. 50mm²
Connectable conductor cross section multi-wired
0 .. 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Pollution degree
3
Rated impulse withstand voltage Uimp
8kV
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Number of protected poles
2
Number of poles (total)
2
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
