Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated current6A
Number of protected poles3
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated voltage690V
Rated insulation voltage Ui690V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Current limiting class3
Pollution degree3
Connectable conductor cross section solid-core0 - 50mm²
Over voltage category4
Number of poles (total)3
Built-in depth82.5mm
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired0 - 70mm²
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Width in number of modular spacings3
Voltage typeAC/DC
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

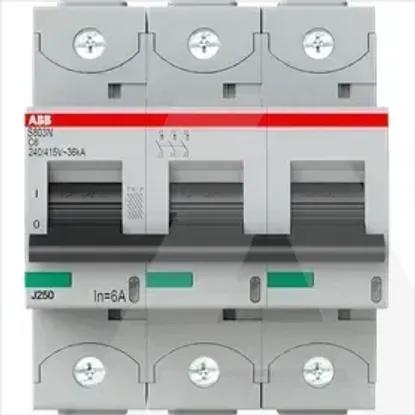

2CCS893001R0064 | S803N-C6
