Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Frequency50 - 60Hz
Current limiting class3
Number of poles (total)3
Rated current10A
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated voltage690V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Voltage typeAC/DC
Rated insulation voltage Ui690V
Over voltage category4
Suitable for flush-mounted installationNo
Pollution degree3
Built-in depth82.5mm
Connectable conductor cross section multi-wired0 - 70mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core0 - 50mm²
Degree of protection (IP)IP20
Number of protected poles3
Concurrently switching neutral conductorNo
Width in number of modular spacings3
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

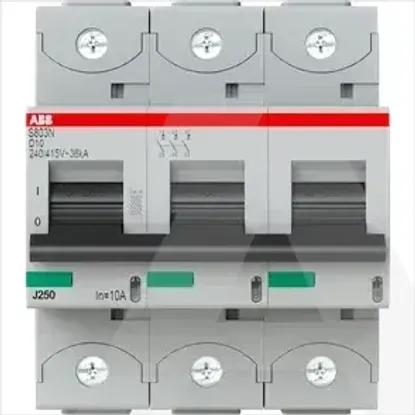

2CCS893001R0101 | S803N-D10
