Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Concurrently switching neutral conductorNo
Rated voltage690V
Rated insulation voltage Ui690V
Frequency50 - 60Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section solid-core0 - 50mm²
Connectable conductor cross section multi-wired0 - 70mm²
Over voltage category4
Built-in depth82.5mm
Suitable for flush-mounted installationNo
Pollution degree3
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Width in number of modular spacings3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated impulse withstand voltage Uimp8kV
Release characteristicD
Number of poles (total)3
Voltage typeAC
Number of protected poles3
Rated current13A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

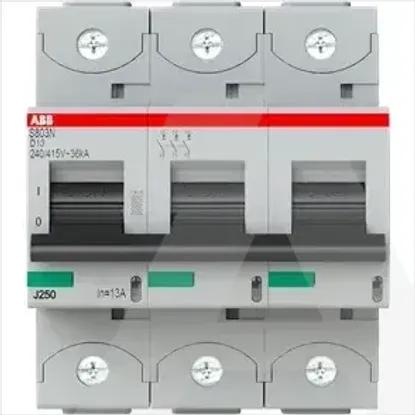

2CCS893001R0131 | S803N-D13
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Current limiting class
3
Concurrently switching neutral conductor
Rated voltage
690V
Rated insulation voltage Ui
690V
Frequency
50 .. 60Hz
Degree of protection (IP)
IP20
Additional equipment possible
Connectable conductor cross section solid-core
0 .. 50mm²
Connectable conductor cross section multi-wired
0 .. 70mm²
Over voltage category
4
Built-in depth
82.5mm
Suitable for flush-mounted installation
Pollution degree
3
Ambient temperature during operating
-25 .. 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Width in number of modular spacings
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated impulse withstand voltage Uimp
8kV
Release characteristic
D
Number of poles (total)
3
Voltage type
AC
Number of protected poles
3
Rated current
13A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
