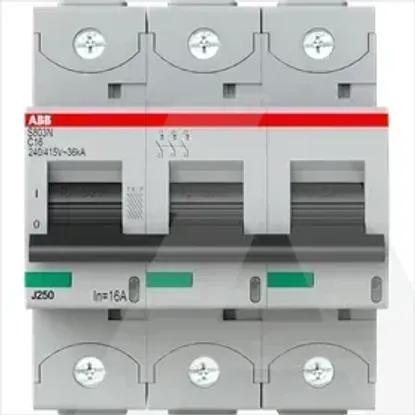

2CCS893001R0164 | S803N-C16

Release characteristic

C

Number of poles (total)

3

Rated current

16A

Rated insulation voltage Ui

690V

Suitable for flush-mounted installation

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

36kA

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Number of protected poles

3

Rated voltage

690V

Voltage type

AC/DC

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36kA

Rated impulse withstand voltage Uimp

8kV

Current limiting class

3

Frequency

50 - 60Hz

Width in number of modular spacings

3

Built-in depth

82.5mm

Over voltage category

4

Additional equipment possible

Yes

Pollution degree

3

Connectable conductor cross section multi-wired

0 - 70mm²

Ambient temperature during operating

-25 - 60°C

Connectable conductor cross section solid-core

0 - 50mm²

Degree of protection (IP)

IP20
