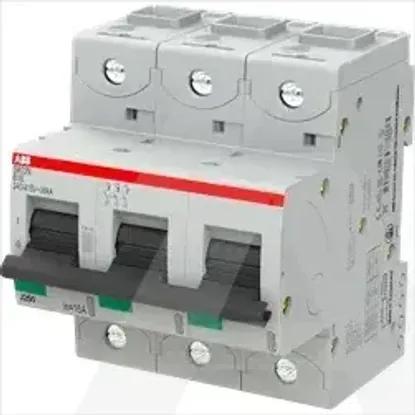

2CCS893001R0165 | S803N-B16

Release characteristic

B

Rated current

16A

Rated insulation voltage Ui

690V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

25kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

36kA

Number of protected poles

3

Number of poles (total)

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

25kA

Voltage type

AC/DC

Pollution degree

3

Built-in depth

82.5mm

Frequency

50 - 60Hz

Rated voltage

690V

Current limiting class

3

Concurrently switching neutral conductor

No

Suitable for flush-mounted installation

No

Width in number of modular spacings

3

Ambient temperature during operating

-25 - 60°C

Additional equipment possible

Yes

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

36kA

Rated impulse withstand voltage Uimp

8kV

Over voltage category

4

Connectable conductor cross section solid-core

0 - 50mm²

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

0 - 70mm²
