Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current25A
Number of protected poles3
Number of poles (total)3
Release characteristicB
Rated voltage690V
Rated insulation voltage Ui690V
Current limiting class3
Voltage typeAC/DC
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp8kV
Pollution degree3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Width in number of modular spacings3
Ambient temperature during operating-25 - 60°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Over voltage category4
Built-in depth82.5mm
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Connectable conductor cross section multi-wired0 - 70mm²
Connectable conductor cross section solid-core0 - 50mm²
Suitable for flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

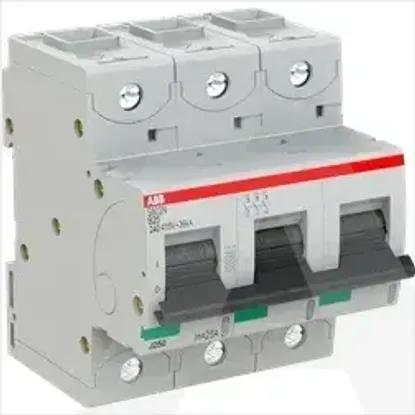

2CCS893001R0255 | S803N-B25
