Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Built-in depth82.5mm
Frequency50 - 60Hz
Release characteristicC
Current limiting class3
Rated voltage690V
Rated insulation voltage Ui690V
Over voltage category4
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Connectable conductor cross section multi-wired0 - 70mm²
Ambient temperature during operating-25 - 60°C
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Degree of protection (IP)IP20
Width in number of modular spacings3
Pollution degree3
Number of poles (total)3
Number of protected poles3
Rated current50A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

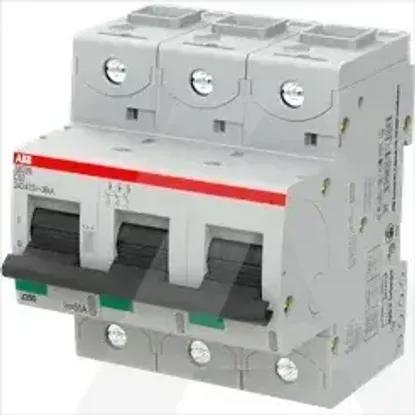

2CCS893001R0504 | S803N-C50
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
AC/DC
Built-in depth
82.5mm
Frequency
50 .. 60Hz
Release characteristic
C
Current limiting class
3
Rated voltage
690V
Rated insulation voltage Ui
690V
Over voltage category
4
Suitable for flush-mounted installation
Connectable conductor cross section solid-core
0 .. 50mm²
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Connectable conductor cross section multi-wired
0 .. 70mm²
Ambient temperature during operating
-25 .. 60°C
Concurrently switching neutral conductor
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Degree of protection (IP)
IP20
Width in number of modular spacings
3
Pollution degree
3
Number of poles (total)
3
Number of protected poles
3
Rated current
50A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
