Details

  • •Circuit breakers and fuses

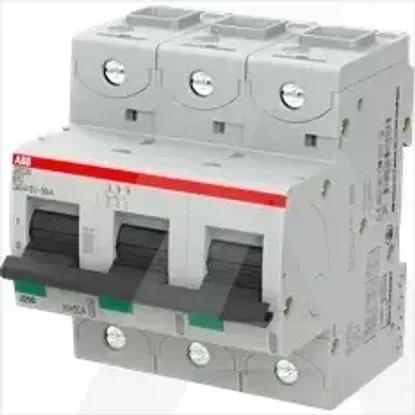

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Rated voltage690V
Built-in depth82.5mm
Frequency50 - 60Hz
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Connectable conductor cross section solid-core0 - 50mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 60°C
Width in number of modular spacings3
Over voltage category4
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Connectable conductor cross section multi-wired0 - 70mm²
Rated impulse withstand voltage Uimp8kV
Concurrently switching neutral conductorNo
Rated insulation voltage Ui690V
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Pollution degree3
Number of protected poles3
Rated current50A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
