Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree3
Number of poles (total)4
Voltage typeAC/DC
Connectable conductor cross section multi-wired0 - 70mm²
Degree of protection (IP)IP20
Rated voltage690V
Width in number of modular spacings4
Built-in depth82.5mm
Over voltage category4
Current limiting class3
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Ambient temperature during operating-25 - 60°C
Rated insulation voltage Ui690V
Additional equipment possibleYes
Rated current32A
Release characteristicC
Number of protected poles4
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V36kA
Rated impulse withstand voltage Uimp8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

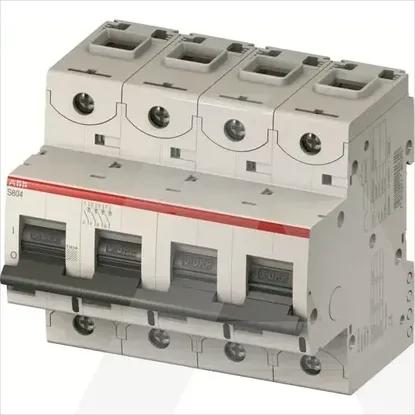

2CCS894001R0324 | S804N-C32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Pollution degree
3
Number of poles (total)
4
Voltage type
AC/DC
Connectable conductor cross section multi-wired
0 .. 70mm²
Degree of protection (IP)
IP20
Rated voltage
690V
Width in number of modular spacings
4
Built-in depth
82.5mm
Over voltage category
4
Current limiting class
3
Concurrently switching neutral conductor
Frequency
50 .. 60Hz
Ambient temperature during operating
-25 .. 60°C
Rated insulation voltage Ui
690V
Additional equipment possible
Rated current
32A
Release characteristic
C
Number of protected poles
4
Suitable for flush-mounted installation
Connectable conductor cross section solid-core
0 .. 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
36kA
Rated impulse withstand voltage Uimp
8kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
36kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
