Details

  • •Circuit breakers and fuses

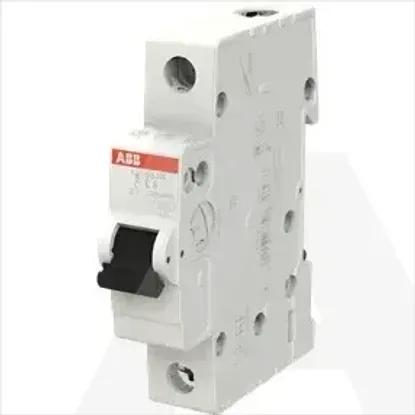

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC
Rated voltage230V
Degree of protection (IP)IP2X
Built-in depth69mm
Suitable for flush-mounted installationNo
Explosion-proofNo
Rated insulation voltage Ui440V
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core0 - 25mm²
Frequency50 - 60Hz
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Pollution degree2
Flush-mounted installationNo
Power loss2W
Over voltage category3
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Additional equipment possibleNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of protected poles1
Width in number of modular spacings1
Rated current6A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
