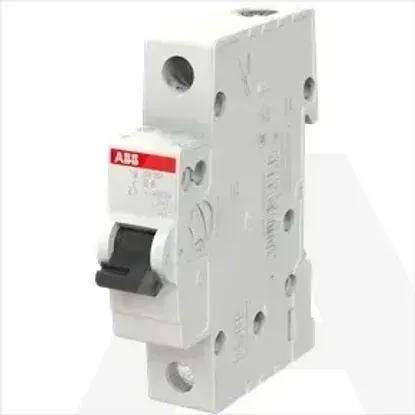

2CDS211001R0065 | SH201-B6
Code: 1548974
ManufacturerABB
Catalog number2CDS211001R0065
TypeSH201-B6
CategoryMiniature circuit breaker (MCB)
EAN code4016779630580
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Power loss2W
Degree of protection (IP)IP2X
Built-in depth69mm
Pollution degree2
Rated insulation voltage Ui440V
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Over voltage category3
Voltage typeAC
Explosion-proofNo
Connectable conductor cross section solid-core0 - 25mm²
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Additional equipment possibleNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of protected poles1
Rated voltage230V
Width in number of modular spacings1
Rated current6A
Release characteristicB
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
From same serie
