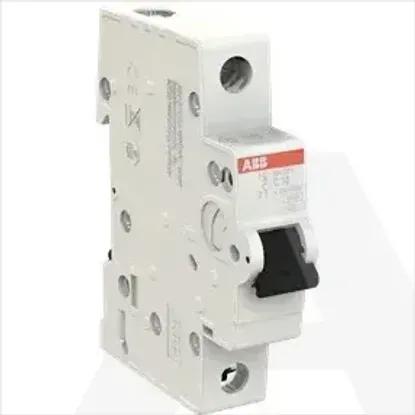

2CDS211001R0104 | SH201-C10
Code: 1548975
ManufacturerABB
Catalog number2CDS211001R0104
TypeSH201-C10
CategoryMiniature circuit breaker (MCB)
EAN code4016779630603
Details
- •MINIJATURNI PREKIDAC, 1P, 10A, C KRIVULJA, 6kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Power loss2.1W
Current limiting class3
Pollution degree2
Built-in depth69mm
Over voltage category3
Degree of protection (IP)IP2X
Rated insulation voltage Ui440V
Explosion-proofNo
Connectable conductor cross section solid-core0 - 25mm²
Ambient temperature during operating-25 - 55°C
Additional equipment possibleNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired0 - 25mm²
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Number of protected poles1
Rated voltage230V
Rated current10A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
