Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC
Rated voltage230V
Rated current20A
Built-in depth69mm
Concurrently switching neutral conductorNo
Number of protected poles1
Rated insulation voltage Ui440V
Over voltage category3
Degree of protection (IP)IP20
Additional equipment possibleNo
Suitable for flush-mounted installationNo
Release characteristicB
Pollution degree2
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
Number of poles (total)1
Width in number of modular spacings1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Frequency50 - 60Hz
Explosion-proofNo
Power loss2.5W
Connectable conductor cross section solid-core0 - 25mm²
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

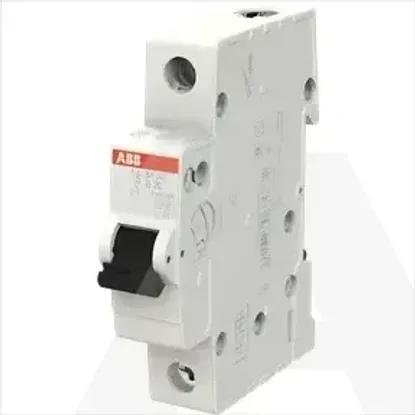

2CDS211001R0205 | SH201-B20
