Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage230V
Rated insulation voltage Ui440V
Voltage typeAC
Built-in depth69mm
Rated current25A
Pollution degree2
Current limiting class3
Explosion-proofNo
Frequency50 - 60Hz
Over voltage category3
Power loss3.2W
Width in number of modular spacings1
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Suitable for flush-mounted installationNo
Additional equipment possibleNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Degree of protection (IP)IP2X
Rated impulse withstand voltage Uimp4kV
Number of protected poles1
Flush-mounted installationNo
Connectable conductor cross section solid-core0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Number of poles (total)1
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

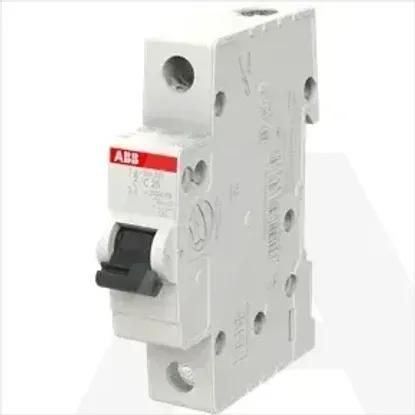

2CDS211001R0254 | SH201-C25
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Release characteristic
C
Rated voltage
230V
Rated insulation voltage Ui
440V
Voltage type
AC
Built-in depth
69mm
Rated current
25A
Pollution degree
2
Current limiting class
3
Explosion-proof
Frequency
50 .. 60Hz
Over voltage category
3
Power loss
3.2W
Width in number of modular spacings
1
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Suitable for flush-mounted installation
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Degree of protection (IP)
IP2X
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
1
Flush-mounted installation
Connectable conductor cross section solid-core
0 .. 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Connectable conductor cross section multi-wired
0 .. 25mm²
Ambient temperature during operating
-25 .. 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6kA
Number of poles (total)
1
From same serie
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
