Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Over voltage category3
Frequency50 - 60Hz
Width in number of modular spacings1
Release characteristicC
Pollution degree2
Voltage typeAC
Current limiting class3
Rated insulation voltage Ui440V
Rated voltage230V
Rated current32A
Degree of protection (IP)IP2X
Power loss3.7W
Explosion-proofNo
Number of protected poles1
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleNo
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Concurrently switching neutral conductorNo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

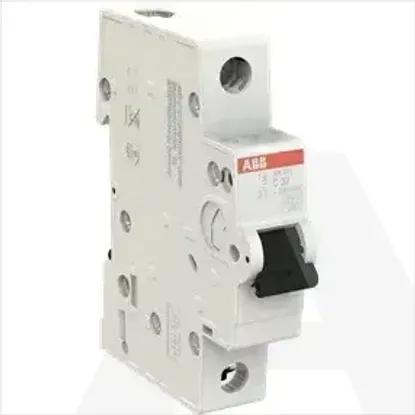

2CDS211001R0324 | SH201-C32
