Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC
Rated current32A
Concurrently switching neutral conductorNo
Width in number of modular spacings1
Built-in depth69mm
Power loss3.7W
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Over voltage category3
Number of protected poles1
Explosion-proofNo
Pollution degree2
Current limiting class3
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Release characteristicB
Rated voltage230V
Flush-mounted installationNo
Connectable conductor cross section solid-core0 - 25mm²
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Number of poles (total)1
Additional equipment possibleNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

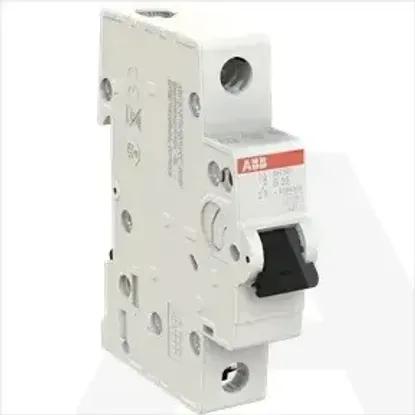

2CDS211001R0325 | SH201-B32
