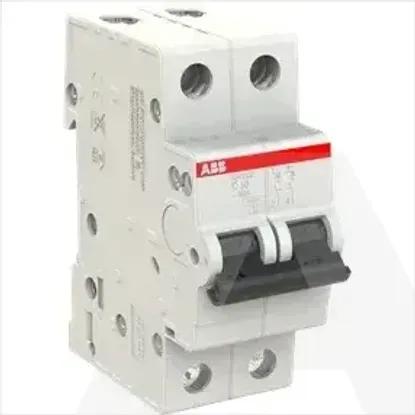

2CDS212001R0104 | SH202-C10
Code: 1548991
ManufacturerABB
Catalog number2CDS212001R0104
TypeSH202-C10
CategoryMiniature circuit breaker (MCB)
EAN code4016779631068
Details
- •MINIJATURNI PREKIDAC, 2P, 10A, C KRIVULJA, 6kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Built-in depth69mm
Degree of protection (IP)IP20
Current limiting class3
Suitable for flush-mounted installationNo
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 25mm²
Pollution degree2
Explosion-proofNo
Over voltage category3
Frequency50 - 60Hz
Power loss4.2W
Ambient temperature during operating-25 - 55°C
Flush-mounted installationNo
Additional equipment possibleNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated voltage400V
Concurrently switching neutral conductorNo
Voltage typeAC
Width in number of modular spacings2
Rated current10A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
