Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Rated current16A
Rated voltage400V
Built-in depth69mm
Release characteristicC
Voltage typeAC
Current limiting class3
Pollution degree2
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Power loss5W
Over voltage category3
Degree of protection (IP)IP20
Number of protected poles2
Explosion-proofNo
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Number of poles (total)2
Additional equipment possibleNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Connectable conductor cross section solid-core0 - 25mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

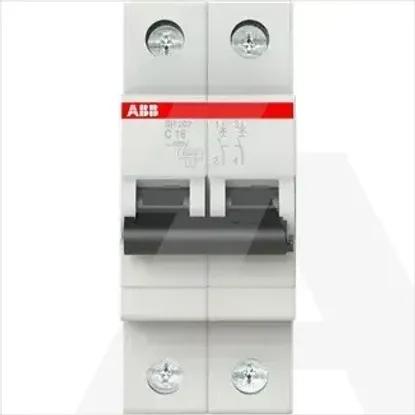

2CDS212001R0164 | SH202-C16
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Frequency
50 .. 60Hz
Rated current
16A
Rated voltage
400V
Built-in depth
69mm
Release characteristic
C
Voltage type
AC
Current limiting class
3
Pollution degree
2
Concurrently switching neutral conductor
Width in number of modular spacings
2
Power loss
5W
Over voltage category
3
Degree of protection (IP)
IP20
Number of protected poles
2
Explosion-proof
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Flush-mounted installation
Connectable conductor cross section multi-wired
0 .. 25mm²
Number of poles (total)
2
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6kA
Connectable conductor cross section solid-core
0 .. 25mm²
Ambient temperature during operating
-25 .. 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Suitable for flush-mounted installation
Rated impulse withstand voltage Uimp
4kV
