Details

  • •Circuit breakers and fuses

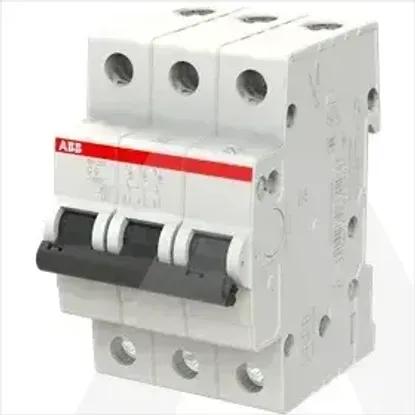

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Explosion-proofNo
Current limiting class3
Power loss6W
Connectable conductor cross section solid-core0 - 25mm²
Ambient temperature during operating-25 - 55°C
Pollution degree2
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Degree of protection (IP)IP2X
Rated insulation voltage Ui440V
Over voltage category3
Built-in depth69mm
Width in number of modular spacings3
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Additional equipment possibleNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Release characteristicC
Number of poles (total)3
Rated current6A
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Voltage typeAC
Rated voltage400V
