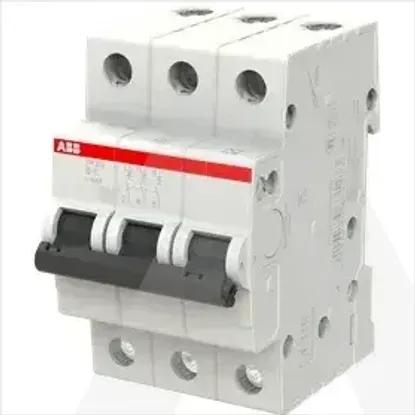

2CDS213001R0065 | SH203-B6
Code: 1549006
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP2X
Voltage typeAC
Suitable for flush-mounted installationNo
Rated current6A
Width in number of modular spacings3
Built-in depth69mm
Rated voltage400V
Release characteristicB
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Number of protected poles3
Connectable conductor cross section solid-core0 - 25mm²
Concurrently switching neutral conductorNo
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated insulation voltage Ui440V
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Additional equipment possibleNo
Frequency50 - 60Hz
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Flush-mounted installationNo
Explosion-proofNo
Power loss6W
