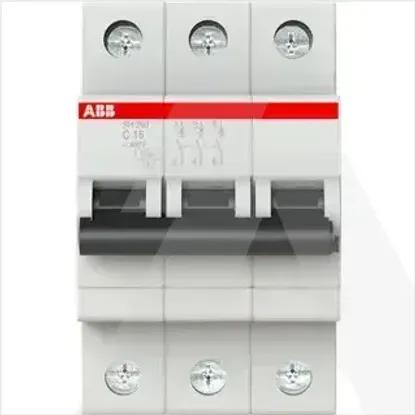

2CDS213001R0164 | SH203-C16
Code: 1549011
ManufacturerABB
Catalog number2CDS213001R0164
TypeSH203-C16
CategoryMiniature circuit breaker (MCB)
EAN code4016779631334
Details
- •MINIJATURNI PREKIDAC, 3P, 16A, C KRIVULJA, 6kA
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Over voltage category3
Rated insulation voltage Ui440V
Ambient temperature during operating-25 - 55°C
Current limiting class3
Explosion-proofNo
Pollution degree2
Power loss7.5W
Built-in depth69mm
Additional equipment possibleNo
Connectable conductor cross section solid-core0 - 25mm²
Suitable for flush-mounted installationNo
Width in number of modular spacings3
Connectable conductor cross section multi-wired0 - 25mm²
Frequency50 - 60Hz
Flush-mounted installationNo
Degree of protection (IP)IP2X
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Number of protected poles3
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Concurrently switching neutral conductorNo
Rated current16A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
