Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Built-in depth69mm
Rated insulation voltage Ui440V
Over voltage category3
Frequency50 - 60Hz
Pollution degree2
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Power loss7.5W
Flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 25mm²
Degree of protection (IP)IP2X
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 55°C
Additional equipment possibleNo
Voltage typeAC
Rated current16A
Rated voltage400V
Release characteristicB
Width in number of modular spacings3
Number of protected poles3
Concurrently switching neutral conductorNo
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

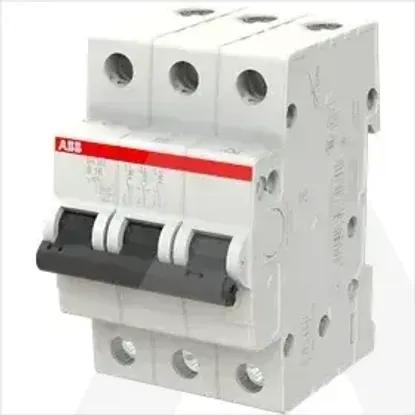

2CDS213001R0165 | SH203-B16
