Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current20A
Built-in depth69mm
Voltage typeAC
Frequency50 - 60Hz
Rated voltage400V
Release characteristicC
Current limiting class3
Rated insulation voltage Ui440V
Number of protected poles3
Over voltage category3
Degree of protection (IP)IP2X
Pollution degree2
Power loss7.5W
Width in number of modular spacings3
Explosion-proofNo
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 25mm²
Flush-mounted installationNo
Number of poles (total)3
Ambient temperature during operating-25 - 55°C
Additional equipment possibleNo
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

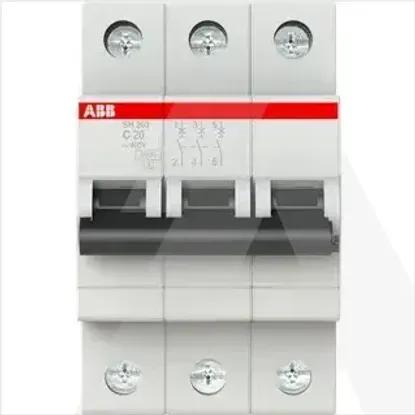

2CDS213001R0204 | SH203-C20
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Rated current
20A
Built-in depth
69mm
Voltage type
AC
Frequency
50 .. 60Hz
Rated voltage
400V
Release characteristic
C
Current limiting class
3
Rated insulation voltage Ui
440V
Number of protected poles
3
Over voltage category
3
Degree of protection (IP)
IP2X
Pollution degree
2
Power loss
7.5W
Width in number of modular spacings
3
Explosion-proof
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Connectable conductor cross section solid-core
0 .. 25mm²
Flush-mounted installation
Number of poles (total)
3
Ambient temperature during operating
-25 .. 55°C
Additional equipment possible
Connectable conductor cross section multi-wired
0 .. 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6kA
From same serie
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
