Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Pollution degree2
Frequency50 - 60Hz
Current limiting class3
Release characteristicC
Suitable for flush-mounted installationNo
Rated voltage400V
Over voltage category3
Power loss9.6W
Built-in depth69mm
Number of protected poles3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP2X
Width in number of modular spacings3
Rated insulation voltage Ui440V
Connectable conductor cross section solid-core0 - 25mm²
Voltage typeAC
Rated current25A
Connectable conductor cross section multi-wired0 - 25mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)3
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 55°C
Additional equipment possibleNo
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

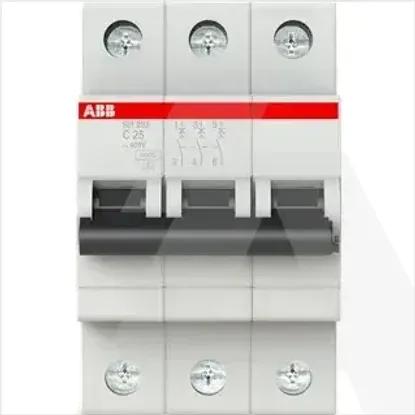

2CDS213001R0254 | SH203-C25
