Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Over voltage category3
Built-in depth69mm
Release characteristicB
Pollution degree2
Rated insulation voltage Ui440V
Voltage typeAC
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Power loss9.6W
Connectable conductor cross section solid-core0 - 25mm²
Additional equipment possibleNo
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Degree of protection (IP)IP2X
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Flush-mounted installationNo
Number of poles (total)3
Number of protected poles3
Rated current25A
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Concurrently switching neutral conductorNo
Width in number of modular spacings3
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

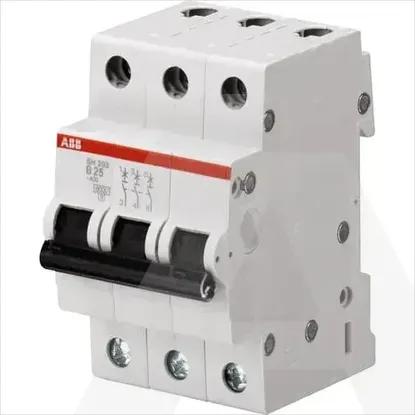

2CDS213001R0255 | SH203-B25
