Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current40A
Built-in depth69mm
Voltage typeAC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated voltage400V
Release characteristicC
Width in number of modular spacings3
Over voltage category3
Explosion-proofNo
Current limiting class3
Number of protected poles3
Pollution degree2
Degree of protection (IP)IP2X
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Power loss14.4W
Connectable conductor cross section solid-core0 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Number of poles (total)3
Ambient temperature during operating-25 - 55°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

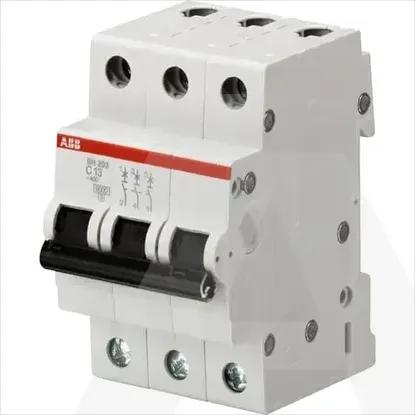

2CDS213001R0404 | SH203-C40
