Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current4A
Voltage typeAC/DC
Rated voltage230V
Built-in depth69mm
Release characteristicD
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 35mm²
Width in number of modular spacings1
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Ambient temperature during operating-25 - 55°C
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Over voltage category3
Number of protected poles1
Degree of protection (IP)IP20
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Additional equipment possibleYes
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

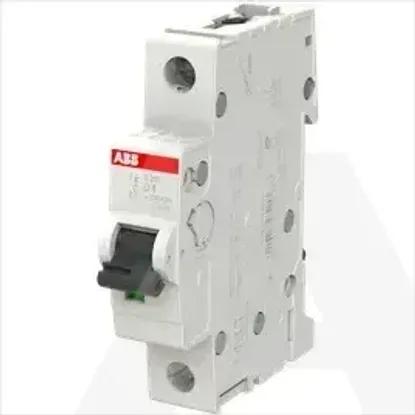

2CDS251001R0041 | S201-D4
