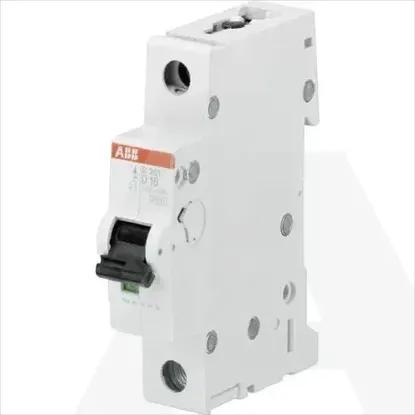

2CDS251001R0061 | S201-D6
Code: 1549046
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicD
Number of protected poles1
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Suitable for flush-mounted installationNo
Width in number of modular spacings1
Number of poles (total)1
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Connectable conductor cross section multi-wired0 - 25mm²
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Current limiting class3
Concurrently switching neutral conductorNo
Rated current6A
Voltage typeAC/DC
Additional equipment possibleYes
Over voltage category3
Built-in depth69mm
Connectable conductor cross section solid-core0 - 35mm²
From same serie
