Details

  • •Circuit breakers and fuses

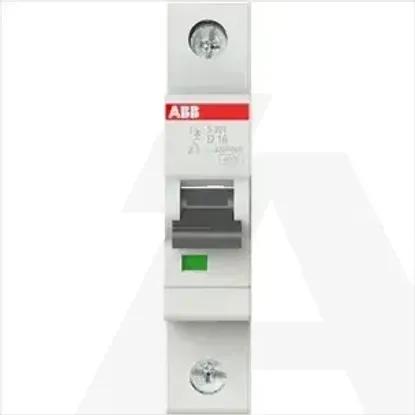

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Built-in depth69mm
Rated voltage230V
Rated insulation voltage Ui440V
Over voltage category3
Current limiting class3
Frequency50 - 60Hz
Pollution degree2
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Connectable conductor cross section multi-wired0 - 25mm²
Width in number of modular spacings1
Number of protected poles1
Rated current16A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
