Details

  • •Circuit breakers and fuses

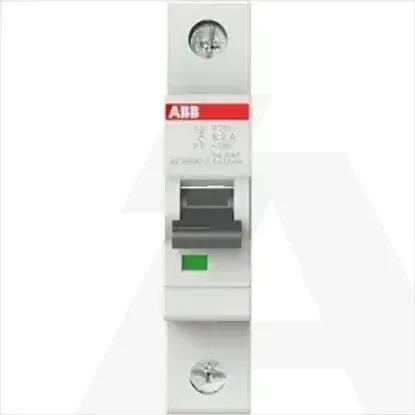

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Pollution degree2
Current limiting class3
Frequency50 - 60Hz
Built-in depth69mm
Rated insulation voltage Ui440V
Over voltage category3
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 35mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated voltage230V
Number of protected poles1
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Width in number of modular spacings1
Degree of protection (IP)IP20
Rated current2A
Release characteristicK
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
