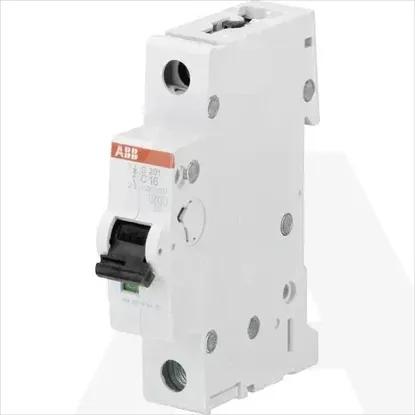

2CDS251001R0324 | S201-C32
Code: 1549076
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated voltage230V
Number of poles (total)1
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Current limiting class3
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Rated current32A
Built-in depth69mm
Frequency50 - 60Hz
Voltage typeAC/DC
Over voltage category3
Connectable conductor cross section solid-core0 - 35mm²
Degree of protection (IP)IP2X
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Pollution degree2
