Details

  • •Circuit breakers and fuses

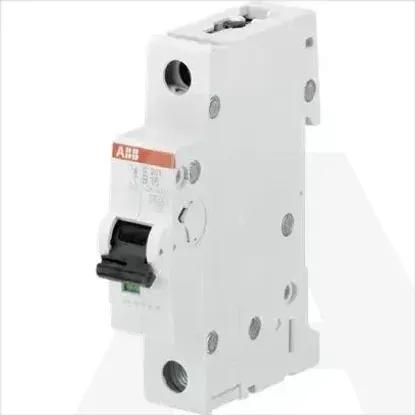

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Built-in depth69mm
Current limiting class3
Frequency50 - 60Hz
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 25mm²
Pollution degree2
Connectable conductor cross section solid-core0 - 35mm²
Over voltage category3
Suitable for flush-mounted installationNo
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated voltage230V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Number of poles (total)1
Release characteristicB
Additional equipment possibleYes
Rated current32A
Concurrently switching neutral conductorNo
Number of protected poles1
Width in number of modular spacings1
