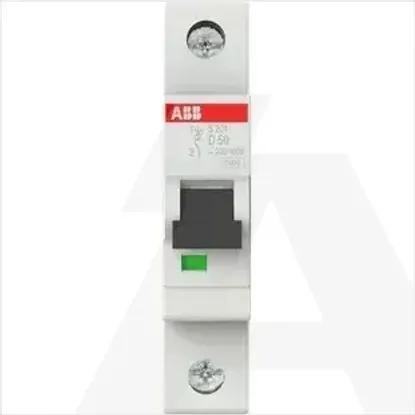

2CDS251001R0501 | S201-D50
Code: 1549096
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)1
Release characteristicD
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated current50A
Number of protected poles1
Rated voltage230V
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Current limiting class3
Over voltage category3
Additional equipment possibleYes
Frequency50 - 60Hz
Degree of protection (IP)IP20
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 25mm²
Pollution degree2
Built-in depth69mm
Connectable conductor cross section solid-core0 - 35mm²
Ambient temperature during operating-25 - 55°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS251001R0501 | S201-D50
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles (total)
1
Release characteristic
D
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated current
50A
Number of protected poles
1
Rated voltage
230V
Rated impulse withstand voltage Uimp
4kV
Rated insulation voltage Ui
440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Voltage type
AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Suitable for flush-mounted installation
Concurrently switching neutral conductor
Current limiting class
3
Over voltage category
3
Additional equipment possible
Frequency
50 .. 60Hz
Degree of protection (IP)
IP20
Width in number of modular spacings
1
Connectable conductor cross section multi-wired
0 .. 25mm²
Pollution degree
2
Built-in depth
69mm
Connectable conductor cross section solid-core
0 .. 35mm²
Ambient temperature during operating
-25 .. 55°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
