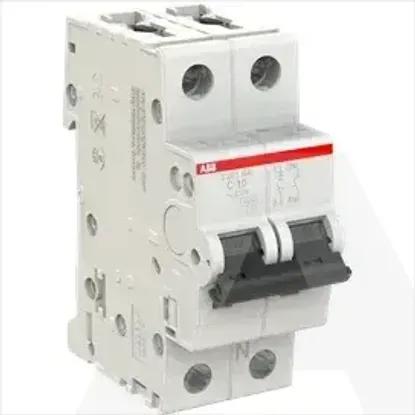

2CDS251103R0104 | S201-C 10 NA
Code: 1549138
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Release characteristicC
Number of poles (total)2
Number of protected poles1
Rated current10A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated insulation voltage Ui440V
Rated voltage230V
Frequency50 - 60Hz
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Over voltage category3
Pollution degree3
Width in number of modular spacings2
Built-in depth69mm
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core0 - 35mm²
Voltage typeAC/DC
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Current limiting class3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS251103R0104 | S201-C 10 NA
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated current
10A
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated insulation voltage Ui
440V
Rated voltage
230V
Frequency
50 .. 60Hz
Additional equipment possible
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Over voltage category
3
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
69mm
Degree of protection (IP)
IP20
Rated impulse withstand voltage Uimp
4kV
Concurrently switching neutral conductor
Connectable conductor cross section solid-core
0 .. 35mm²
Voltage type
AC/DC
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section multi-wired
0 .. 25mm²
Current limiting class
3
