Details

  • •Circuit breakers and fuses

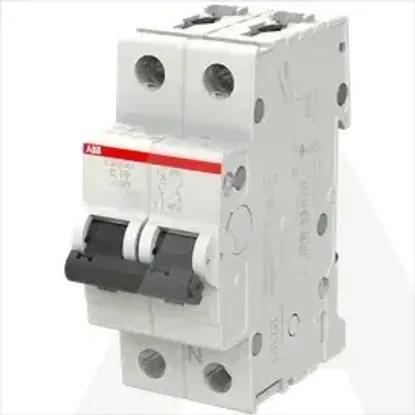

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Built-in depth69mm
Rated insulation voltage Ui440V
Rated voltage230V
Frequency50 - 60Hz
Current limiting class3
Width in number of modular spacings2
Over voltage category3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Pollution degree3
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Number of protected poles1
Concurrently switching neutral conductorYes
Rated current16A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
