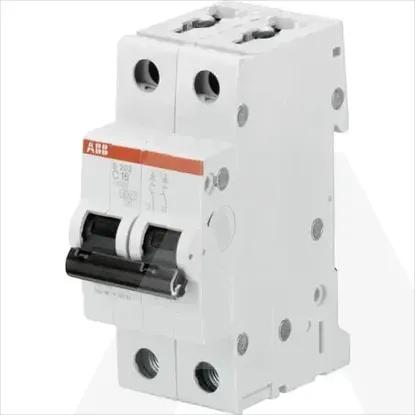

2CDS252001R0024 | S202-C2
Code: 1549214
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles2
Rated current2A
Release characteristicC
Number of poles (total)2
Rated voltage400V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Current limiting class3
Frequency50 - 60Hz
Suitable for flush-mounted installationNo
Over voltage category3
Concurrently switching neutral conductorNo
Pollution degree3
Built-in depth68mm
Width in number of modular spacings2
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Voltage typeAC/DC
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core0 - 35mm²
