Details

  • •Circuit breakers and fuses

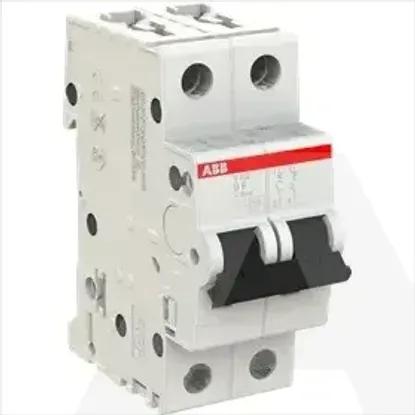

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Pollution degree3
Rated voltage400V
Over voltage category3
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Width in number of modular spacings2
Connectable conductor cross section solid-core0 - 35mm²
Connectable conductor cross section multi-wired0 - 25mm²
Frequency50 - 60Hz
Built-in depth68mm
Rated insulation voltage Ui440V
Voltage typeAC/DC
Current limiting class3
Number of protected poles2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Additional equipment possibleYes
Rated current6A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
