Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Current limiting class3
Pollution degree3
Over voltage category3
Frequency50 - 60Hz
Built-in depth68mm
Rated insulation voltage Ui440V
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Release characteristicD
Number of poles (total)2
Rated current16A
Number of protected poles2
Rated voltage400V
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Width in number of modular spacings2
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

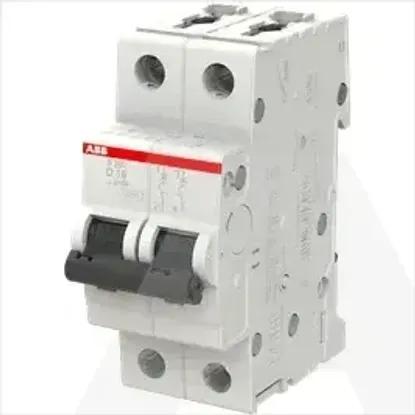

2CDS252001R0161 | S202-D16
