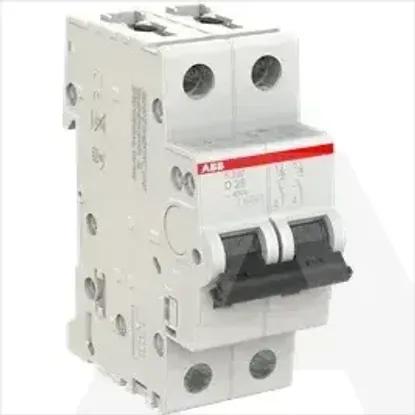

2CDS252001R0251 | S202-D25
Code: 1549240
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current25A
Release characteristicD
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Number of poles (total)2
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Number of protected poles2
Concurrently switching neutral conductorNo
Pollution degree3
Rated voltage400V
Additional equipment possibleYes
Over voltage category3
Width in number of modular spacings2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Current limiting class3
Voltage typeAC/DC
Suitable for flush-mounted installationNo
Built-in depth69mm
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 35mm²
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS252001R0251 | S202-D25
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated current
25A
Release characteristic
D
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Number of poles (total)
2
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
2
Concurrently switching neutral conductor
Pollution degree
3
Rated voltage
400V
Additional equipment possible
Over voltage category
3
Width in number of modular spacings
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Current limiting class
3
Voltage type
AC/DC
Suitable for flush-mounted installation
Built-in depth
69mm
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
0 .. 35mm²
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section multi-wired
0 .. 25mm²
